Highlights

• Compatible lenses: Canon EF series lenses
• Compatible cameras: M4/3 series cameras
• Focus mode: Auto focus
• Focal Lenth Multiplier: 0.71x
• Optical glasses: 4 groups, 4 glasses
• Tripod Socket: Cu1/4"× 1
• Diameter and Length: Φ67mm×25mm.
• Weight: Approx. 85 g (excluding cap).
• Front cap: Camera cover
• Rear cap: Lens Dust cap

Overview

Lens Compatibility

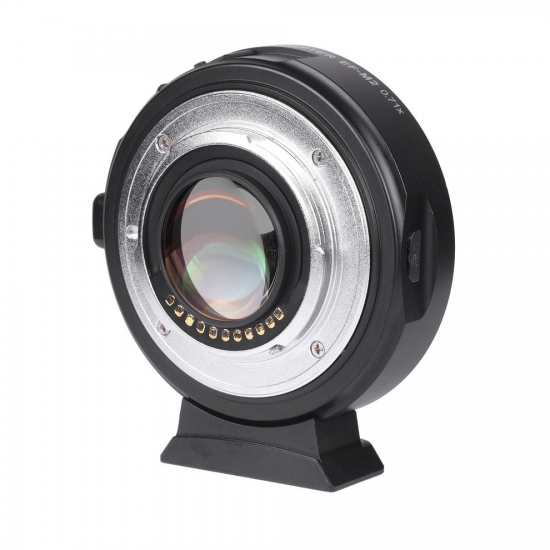

The Viltrox EF-M2 is compatible with all the EF mount series lens to be used on M4/3 series cameras.

Support AF Function

The EF-M2 lens adapter comes with a gold-plating contact, which can help to connect your Canon EF mount series lens to M4/3 Cameras, making auto focus be perfectly.

Gold-plating contact

The gold-plating contact helps to connect your Canon EF mount series lens to M4/3 Cameras.

Support Aperture Control

Designed with internal aperture motor, you can adjust the aperture from the camera's end directly to control the lens’ actual aperture. Plus 0.71 based on the original focal length, helps enlarge 1 level aperture.

USB Firmware Upgrade

The lens mount adapter is equipped with a USB interface to enable the realization of software upgrade. This means the EF-M2 can perfect new functions of the lens mount adapter and fix bugs according to follow-up upgrades.

Included in the box

• EF-M2 Mount Adapter
• Front Cap
• Rear Cap
• User Manual (English and Chinese)
