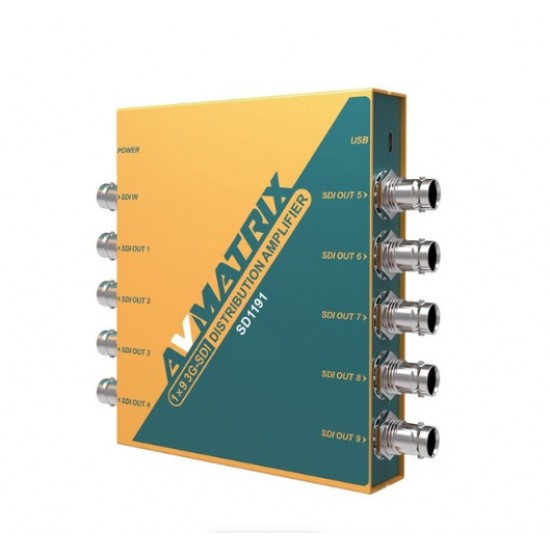

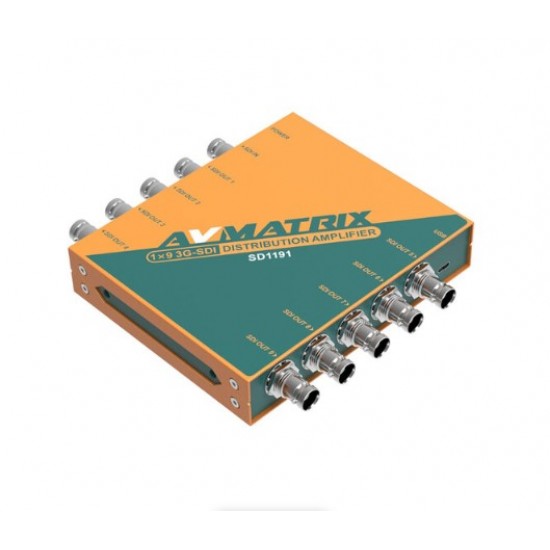

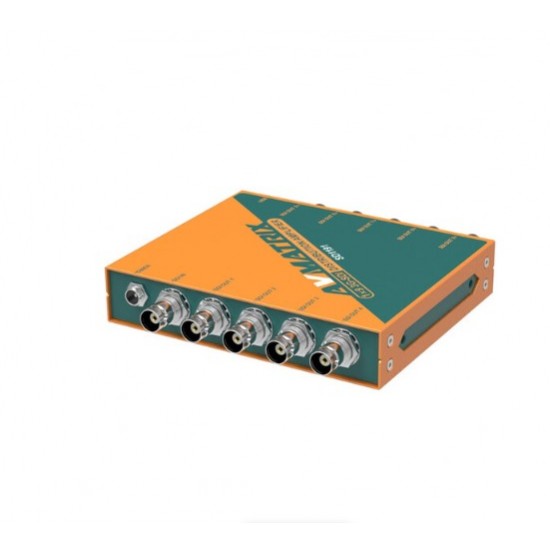

AVMATRIX SD1191 1-9 3G-SDI Distribution Amplifier

Product Highlights

• Auto-Detects up to 1080p60 SDI Input
• 9 x Buffered and Reclocked Outputs
• 3G-SDI Cable Lengths up to 394'
• RGB 4:4:4 & YUV 4:2:2/4:4:4 10-/12-Bit
• Ancillary Data Passed to the Outputs
• DVB-ASI Compatibility
• Locking Power Supply

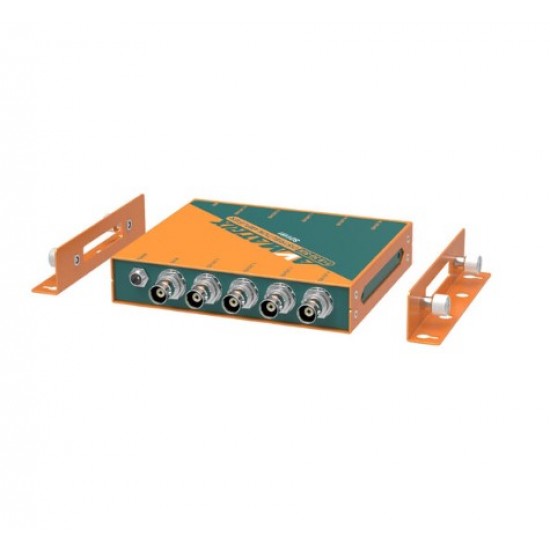

• Mounting Ears Included

Overview

This is a compact, one input, nine output distriution amplifier for SDI and multi-rate SDI video signals. It features an automatic reclocking and equalization techniques that enables SDI cable distance up to SD: 400m, HD: 200m, 3G: 120m. It is also an ASI distributor amplifier that all input and outputs are compatible with ASI signal.

Specifications

• 3G/HD/SD-SDI input and 9 buffered and reclocked outputs
• Supports DVB-ASI signals
• RGB 4:4:4 10-bit/12-bit
• YUV 4:2:2/4:4:4 10-bit/12-bit
• Automatic cable equalization and signal retiming
• All ancillary data is passed to the outputs
• LED indicators for power and signal lock
• Threaded locking power connector

In the Box

• 1 x AVMATRIX 1x9 3G-SDI Reclocking Distribution Amplifier
• 1 x Locking Power Supply
• 1 x 2 x Mounting Ear
