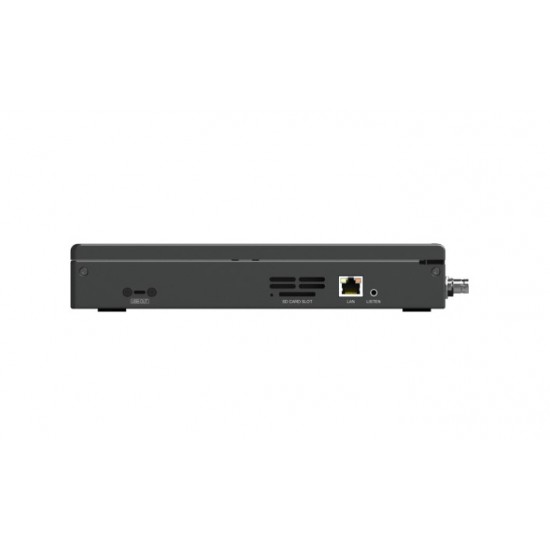

AVMATRIX PVS0615U Portable 6 Channel SDI/HDMI Multi-format Streaming Switcher with 15.6" Display

Product Highlights

• Four SDI, two HDMI 4K60, two DVI/VGA and two USB ports
• USB 3.0 Type-C live streaming output
• 1080p/i60 scaled PGM SDI/HDMI out
• Full HD 15.6" 6-Ch multiview display
• SDI AUX Output, PGM or PVW
• RCA L/R audio I/O
• Headphone output
• GPIO tally
• Enclosed in a metal case
• Luma key/Chroma key

Overview

The AVMATRIX PVS0615 6-Channel Video Switcher is a compact livestreaming necessity with a 15.6-inches FHD LCD monitor and can allow for mix or switch of up to six video inputs in a feed. This switcher has two HDMI and four SDI inputs, two VGA/DVI, and two USB inputs, all for connection to cameras or other professional sources. It can switch up to 4K60 video over HDMI with embedded TRS audio. All the connections are autodetecting.

It also supports multiview with the layout allowing you to preview, program and input sources all on the same screen, PIP and POP screen positioning is adjustable. Another feature of this switcher is the ability to allow for PGM recording on a SD card, up to 1080p60 H.264. All the signals can be scaled to 1080p60 or 1080i60 on PGM output via SDI/HDMI. The switcher is housed in a robust metal case and has easy to use switching controls like a T-bar.

AVMATRIX PVS0615 Features

• Uncompressed capture for live streaming over a USB Type-C port (UVC/UAC compliant)
• Supports six inputs over four SDI, plus any mix from two HDMI, two DVI/VGA, and two USB Type-A inputs
• Three SDI outputs (PGM); the third output can be used for AUX
• Two HDMI PGM and one HDMI multiview output
• Multiformat input autodetected, and PGM/AUX output format selectable
• T-Bar/Auto/Cut transitions
• Mix/Fade/Wipe transition effects
• Luma and chroma key
• TRS audio and SDI/HDMI/USB embedded audio
• SD card slot

In the Box

• AVMATRIX PVS0615U 6-Channel switcher with 15.6" display
• Power supply
• USB Type-C cable
