Blackmagic Design ATEM Mini Pro ISO Live Stream Switcher

Product Highlights

• Live Stream HDMI Switcher (4-channel)
• Live Tally, Stream, and Record Status

Overview

Another Live Stream Switcher from Blackmagic Design is the ATEM Mini Pro ISO. It is a HDMI switcher with four inputs for multicamera streaming with an integrated control panel and streaming up to HD videos via an Ethernet cable to the internet. You can record your footage output and/or the individual HDMI inputs to an external (not included) USB drive. It includes features found in the ATEM Mini Pro, the ISO model is also able to record embedded audio as well as analog audio inputs, thus, generating a DaVinci Resolve project file of your live stream becomes possible. With this, you can take your live production into DaVinci Resolve and make adjustments or tweaks.

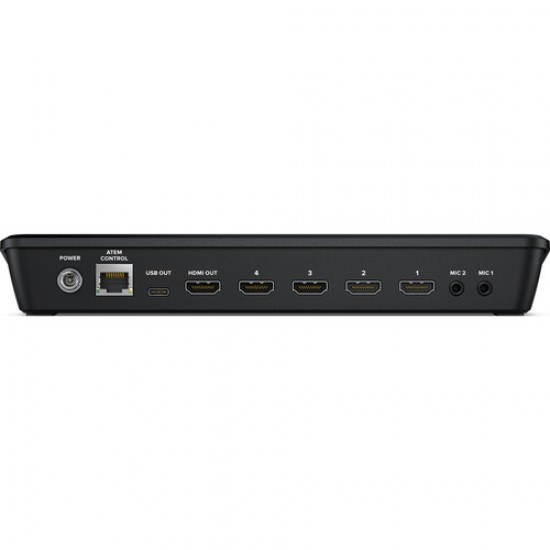

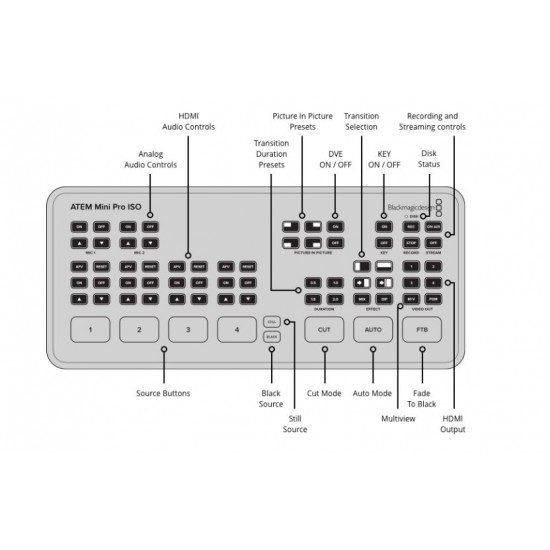

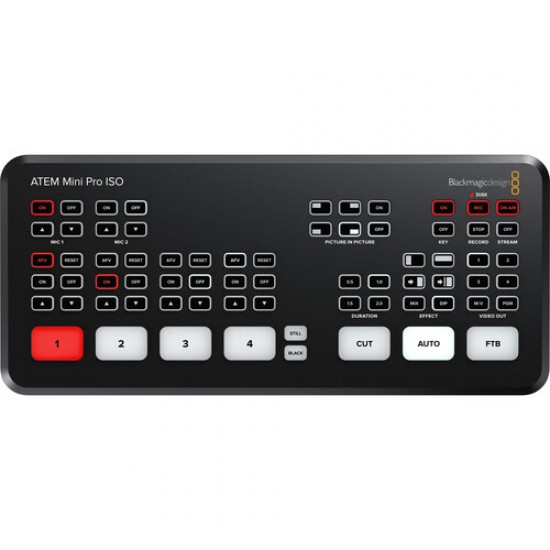

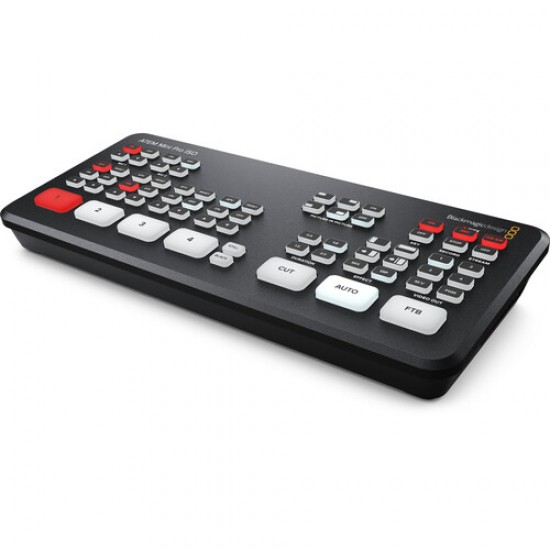

In physcial appearance and build, the ATEM Mini Pro ISO has a similar button layout, rear panel interface connections and is the same size as the ATEM Mini Pro. It also supports such features as upstream and downstream keyers, an advanced chroma keyer, two linear/luma keyers, a DVE transition keyer, a pattern generator, and color generators. There is also media player support for fill and key images, which supports up to 20 stills in PNG, TGA, BMP, JPEG, and TIFF formats. The ATEM Software Control Panel is used for control and configuration, and it allows you to monitor the data rate, audio meters, configuration, and status of your live feed. And you can use the panel to set up streaming to an optional Blackmagic Design Streaming Bridge anywhere in the world, as long as it is connected to the internet.

In the Package

• Blackmagic Design ATEM Mini Pro ISO HDMI Live Stream Switcher
• Power Supply for ATEM Mini Pro ISO (12V) with International Adapters
