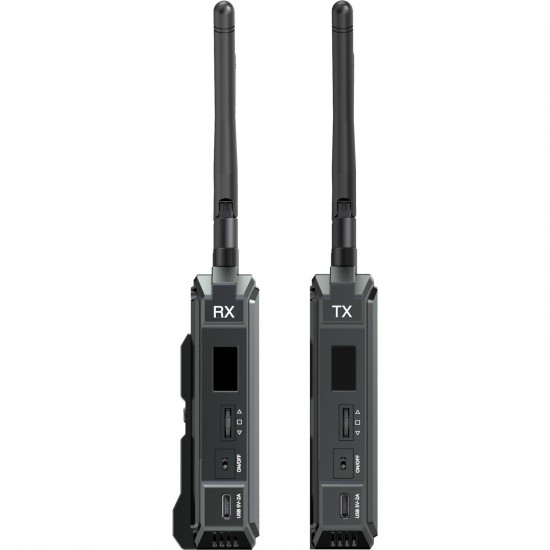

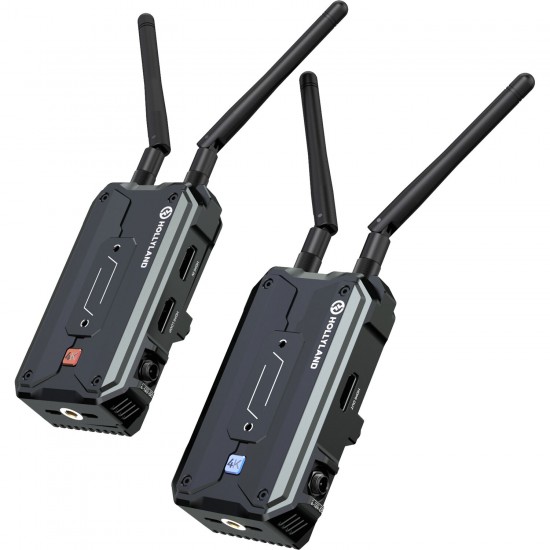

Hollyland Pyro H 4K HDMI Wireless Video Transmission System

Product Highlights

• Wireless Transmitter and Receiver Set
• Transmit UHD 4K30 Video up to 396m
• HDMI Input, Output, and HDMI Loop Output
• 2.4 and 5 GHz Frequency Bands
• Supports UVC Plug-and-Play for Streaming
• 650' Transmission in Broadcast Mode
• Smart Channel Scanning, Bright LCD
• Low 60 ms Latency, 12 Mb/s Bit Rate
• DC, L-Series, and USB-C Power Options

Overview of Hollyland Pyro H 4K HDMI Wireless Video Transmission System

Transmit 4K at 30fps videos with the Pyro H 4K HDMI Wireless Video Transmission System from Hollyland that includes a wireless receiver, five antennas, a USB-A to USB-C adapter, and an adjustable shoe adapter mount. The transmitter features a HDMI input and extremely low 60 ms latency that accepts line-of-sight transmission from up to 396m away to the included receiver. With its flexibility when additional monitoring needs emerge on set it is one of the good choices for diverse applications, such as film production, commercial filming, live event filming, and ENG/EFP applications.

Transmission Range

Pyro H sets a new benchmark with an impressive transmission range of up to 1,300ft (396m) when using at most two receivers and two mobile devices and ultra-low latency of just 60ms meeting all your professional filming and live broadcasting. It can also transmit signals to at most four receivers, and the line-of-sight range reaches 198m.

Strong Signal Strength

At a stable transmission range of up to approximately, the Pyro H features latency as low as 60ms. The transmitter/receiver combo also provides two modes for users to tip the balance between image quality and latency, with HD mode for better image quality with bitrate at up to 12 Mb/s and Smooth mode for a dynamic change in latency.

HDMI Loop Output

The transmitter features HDMI output to allow video dispaly of video signals on a monitor without compromising the quality of the transmitted signal. This enables users to conveniently monitor the transmitted content and make adjustments as necessary.

Crisp and Sharp Images

With up to 4K30 transmission capabilities, the Pyro H transmits images with superior clarity, detail, and realism, making it a great choice for professional applications like broadcast and filmmaking.

USB Video Class

Both transmitter and receiver come with USB-C OTG adapterto allow integration with a wide range of devices. This plug-and-play feature also helps simplify setup and operation, making it an appealing solution for various applications, including live streaming and video conferencing.

Smart Channel Scan

Users can activate the smart channel scan function on the receiver to view real-time feedback on the frequency status, thus ensuring an uninterrupted and reliable experience.

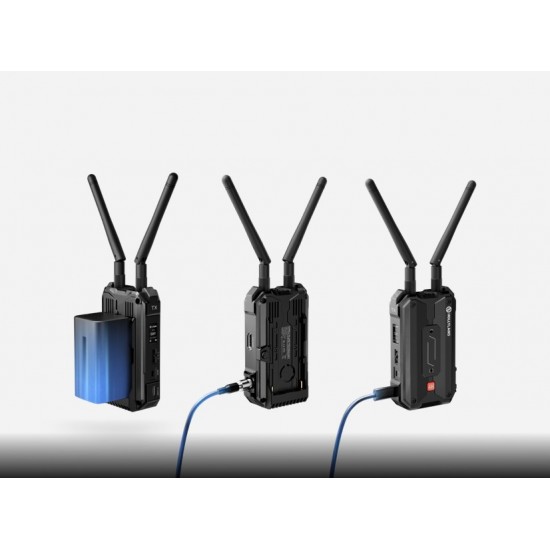

Continuous Power

This set up supports a USB-C power supply (5-12V) making it posible to use a power bank. A USB power supply option provides convenience, especially when using stabilizers, as it eliminates the need for larger reducing overall weight and enhancing maneuverability.

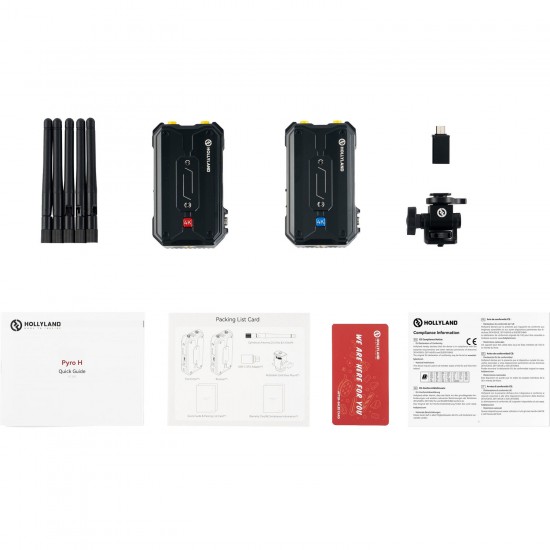

In the Box

• Hollyland Pyro H 4K HDMI Wireless Video Receiver
• Hollyland Pyro H 4K HDMI Wireless Video Transmitter
• 5 x Cylindrical Antenna (2.4/5 GHz)
• Hollyland Rotatable Cold Shoe Adapter Mount for Wireless Unit
• USB-A to USB-C Adapter
